PDM12 Motorsport Keypad & Relay Module
PDM12 Motorsport Keypad & Relay Module
The PDM12 is an extremely user-friendly power distribution module (PDM12) that replaces fuses and relays in a modern way. This kit also includes a weatherproof keypad (KEY12) that replaces buttons and switches.
PDM12 + KEY12 is suitable for everything from Cars, Boats, Machinery, ATVs, Snowmobiles, Jet Skis, Motorhomes, and more, as the buttons and relays are programmable for functions such as turn signals, starter motors, and pumps – but you can easily set it to perform any function you like.
PDM (PDM12):

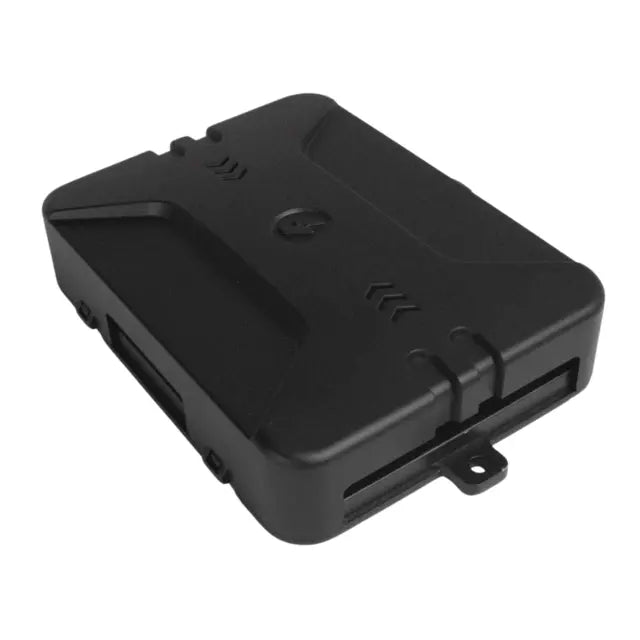

The PDM12 is a modern and compact programmable relay and fuse box with 6 outputs that completely replaces your old fuse panel. It has a built-in circuit alarm for safety with an indicator on each output. Each output can be individually programmed as On/Off, Momentary, Turn Signals / Hazard Lights, or Pulse / Strobe.
Keypad (KEY12):

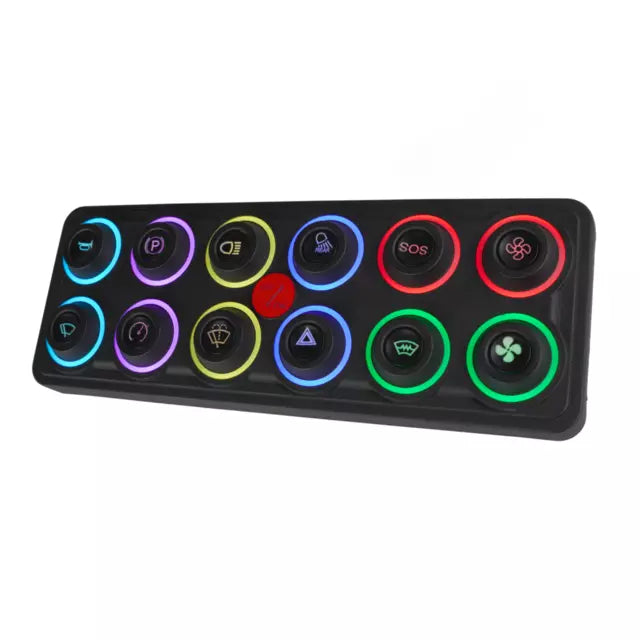

The KEY12 is a waterproof programmable CAN keypad that, together with the PDM12, replaces all old buttons and switches in a compact unit. With individually replaceable buttons and colors, the KEY12 is extremely flexible and suitable for all applications.
Functions:
With the PDM12 & KEY12 you can easily control a range of functions such as:
- Fuel pump
- Starter motor
- Cooling fan
- Heater fan
- ECU
- Turn signals
- Hazard lights
- Lighting
- Wipers
- Water pump
- Boost control
- NOS
- And other functions that you can easily set yourself. The possibilities are endless.
Advantages:
PDM12 + KEY12 is an optimal combination of Price / Performance / Function / Simplicity. You get a modern electrical system with total control that is very easy to install at an extremely attractive price.
- Extremely easy installation (Installation manual included)
- Modern technology for maximum durability
- Everything is easily controlled from the KEY12 keypad
- Affordable price for everyone
Specifications:
- Number of outputs: 6 programmable outputs (4x5A, 4x10A, 4x20A, 4x30A)
- Button colors: Red, Purple, Blue, White, Green, Orange, Yellow
- Communication: CAN (PDM<->keypad)
- Safety: Circuit alarm with indicator on each output
- Voltage: 12/24 Volt (8-32V)
- Max current: 100A
- Shock resistant: YES
- Operating temperature: -40 to +90 degrees
- Rating: IP68 (Dustproof and waterproof)
Included parts:
- 1x Digital fuse box (PDM12)
- 1x Keypad (KEY12)
- 1x Mounting bracket
- 1x 2-meter cable for KEY12
- 1x Red power cable for PDM12 ~63cm
- 1x Red power cable for PDM12 ~28cm
- 1x Black power cable for PDM12 ~63cm
- 1x Circuit breaker
- 1x Set of ~50 icons for KEY12
- 1x Set of screws, nuts, and fuses
- Clear installation instructions
