PDM6 Motorsport Keypad & Relay Module
PDM6 Motorsport Keypad & Relay Module
The PDM6 is an extremely user-friendly power distribution module (PDM6) that replaces fuses and relays in a modern way. This kit also includes a weatherproof keypad (KEY6) that replaces buttons and switches.
PDM6 + KEY6 is suitable for everything from Cars, Boats, Machinery, ATVs, Snowmobiles, Jet Skis, Motorhomes, and more, as the buttons and relays are programmable for functions such as turn signals, starter motors, and pumps – but you can easily set it to perform any function you like.

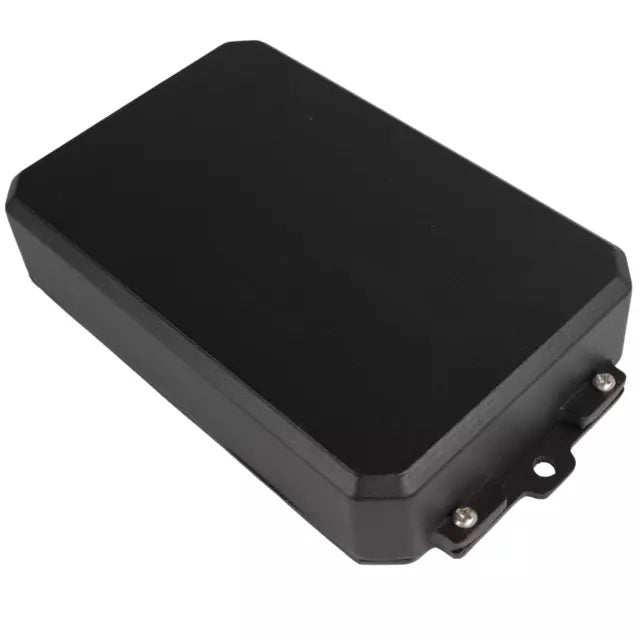

PDM (PDM6):
The PDM6 is a modern and compact programmable relay and fuse box with 6 outputs that completely replaces your old fuse panel. It has a built-in circuit alarm for safety with an indicator on each output. Each output can be individually programmed as On/Off, Momentary, Turn Signals / Hazard Lights, or Pulse / Strobe.

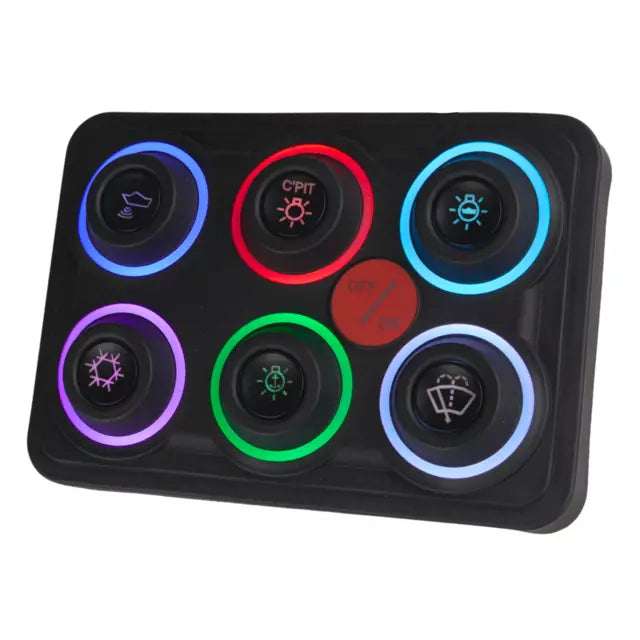

Keypad (KEY6):
The KEY6 is a waterproof programmable CAN keypad that, together with the PDM6, replaces all old buttons and switches in a compact unit. With individually replaceable buttons and colors, the KEY6 is extremely flexible and suitable for all applications.
Functions:
With the PDM6 & KEY6 you can easily control a range of functions such as:
- Fuel pump
- Starter motor
- Cooling fan
- Heater fan
- ECU
- Turn signals
- Hazard lights
- Lighting
- Wipers
- Water pump
- Boost control
- NOS
- And other functions that you can easily set yourself. The possibilities are endless.
Advantages:
PDM6 + KEY6 is an optimal combination of Price / Performance / Function / Simplicity. You get a modern electrical system with total control that is very easy to install at an extremely attractive price.
- Extremely easy installation (Installation manual included)
- Modern technology for maximum durability
- Everything is easily controlled from the KEY6 keypad
- Affordable price for everyone
Specifications:
- Number of outputs: 6 programmable outputs (2x10A, 2x20A, 2x30A)
- Button colors: Red, Purple, Blue, White, Green, Orange, Yellow
- Communication: CAN (PDM<->keypad)
- Safety: Circuit alarm with indicator on each output
- Voltage: 12/24 Volt (8-32V)
- Max current: 60A
- Shock resistant: YES
- Operating temperature: -40 to +90 degrees
- Rating: IP68 (Dustproof and waterproof)
Included parts:
- 1x Digital fuse box (PDM6)
- 1x Keypad (KEY6)
- 1x Mounting bracket
- 1x 2-meter cable for KEY6
- 1x Red power cable for PDM6 ~63cm
- 1x Red power cable for PDM6 ~28cm
- 1x Black power cable for PDM6 ~63cm
- 1x Circuit breaker
- 1x Set of ~50 icons for KEY6
- 1x Set of screws, nuts, and fuses
- Clear installation instructions
