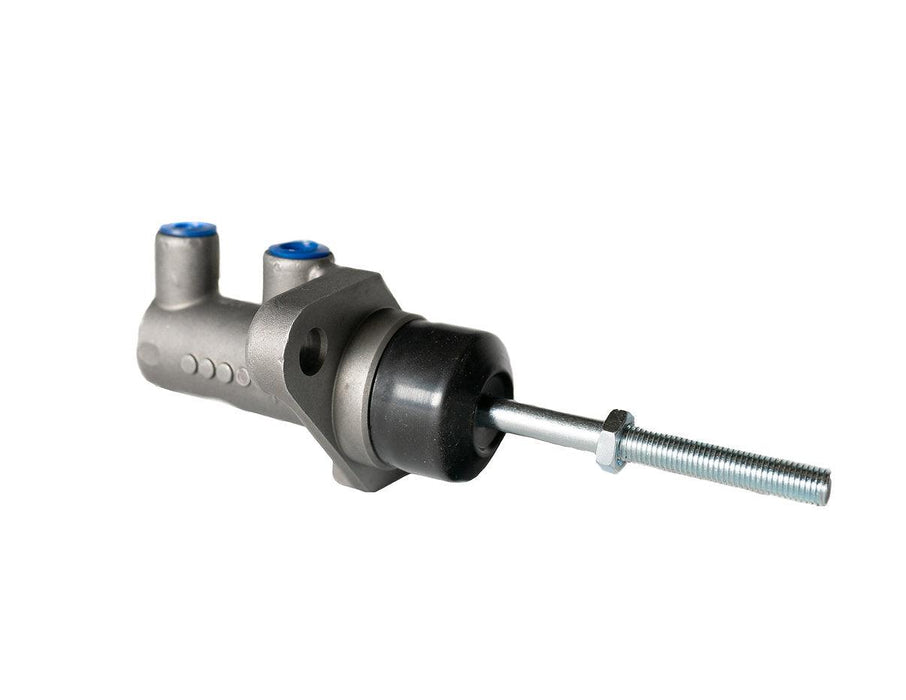

OBP Compact Master Cylinder

obp Motorsport Compact Master Cylinder

• Cast Aluminium
• 60° Offset Mounting Flange
• Lightweight Compact Design
• Universal Fitting
• Use with remote or attachable fluid reservoirs

Available in .625, .7, .75"

Our specially selected range of products that work in unison with all of our obp Motorsport core hardware. Whether you are looking for master cylinders, bias adjusters or replacement parts. obp Motorsport has you covered.

 Product Information:

 200g Weight

Inlet Fitting: 7/16"-20 UNF

Outlet Fitting: 3/8"-24 UNF

Push Rod Thread: 5/16" UNF

Cut off: 0.7mm - 1.7mm

 Piston Stroke Length:

 .625 = 26.2mm

.7 = 26.2mm

.75 = 26.5mm

 Maximum Flow:

 .625 = 5.18ml

.7 = 6.5ml

.75 = 7.54ml

UNF Standard Master Cylinder Set Up:

Front Brakes: 0.625 | Rear Brakes: 0.7 | Clutch: 0.75
