TILTON 600-SERIES

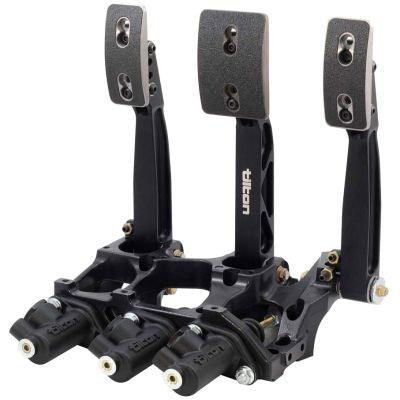

3-PEDAL UNDERFOOT ASSEMBLY 72-616

Forged aluminum pedals and an aluminum frame give the 600-Series underfoot pedal assembly rigid and lightweight support for even the most grueling applications. Included with the assembly is a large 7/16”-20 balance bar (P/N 72-260), which minimizes flex and provides a solid pedal feel. Action on the pedals is kept smooth and consistent with low friction oil-impregnated bushings on the pedal pivots. For additional customization, the 600-Series 3-pedal underfoot assembly is also compatible with customer-supplied false floors and heel rests.

TECHNICAL SPECIFICATIONS:

  • Forged aluminum pedals
    • Engineered for high rigidity and low weight
  • Lightweight and rigid aluminum frame
    • Designed to accept customer-supplied false floor/heal rest
  • Large 7/16”-20 balance bar
    • Minimizes flex and provides a solid pedal feel/response
  • Aluminum foot pads
    • Can be adjusted vertically, horizontally and in angle to suit individual driver preferences
  • Adjustable pedal ratio (5.4:1-6.9:1)
    • Enables fine tuning of braking system
  • Low friction oil-impregnated bushing on pedal pivots
  • Accepts AP Racing Master Cylinders
    • CP2623
    • CP5623
