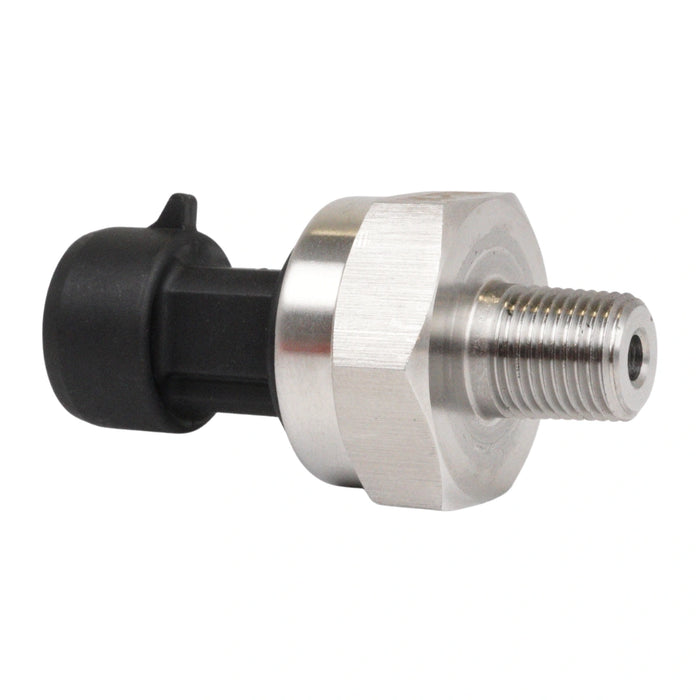

Hurricane motorsport Pressure sensor 1/8" NPT

Hurricane motorsport Pressure Sensor 1/8" NPT for Oil & Fuel Pressure

Hurricane pressure sensor for oil and fuel pressure is a high-quality sensor developed for use with aftermarket ECU and data logging systems. The sensor has a measuring range from 1 to 10 bar and delivers a stable 0-5V signal for accurate readings in all common ECU systems.

Thanks to its media-isolated construction, the sensor works perfectly with oil, water, gasoline and ethanol. The sensor is equipped with a 1/8"-27 NPT thread and a 3-pin Honeywell connector for easy installation.

Features & Specifications

• High-quality pressure sensor for custom and motorsport applications
• Measuring range: 1 to 10 bar

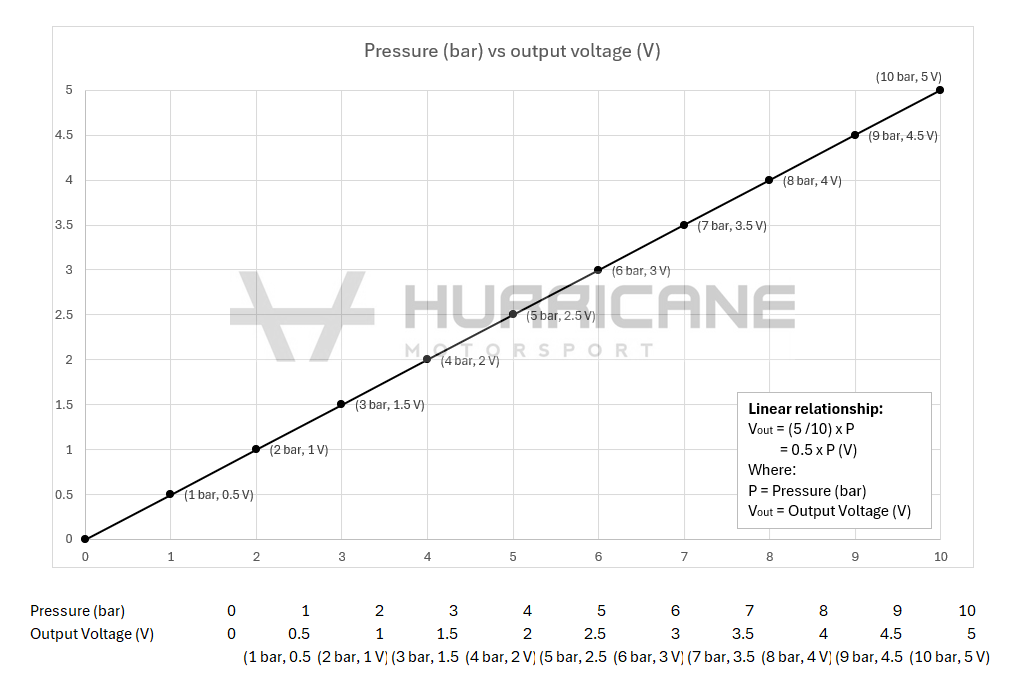

• 0-5V output signal
• 1/8"-27 NPT connection
• 3-pin Honeywell connector
• Suitable for oil, water, gasoline and ethanol
• Developed for aftermarket ECU and data logging

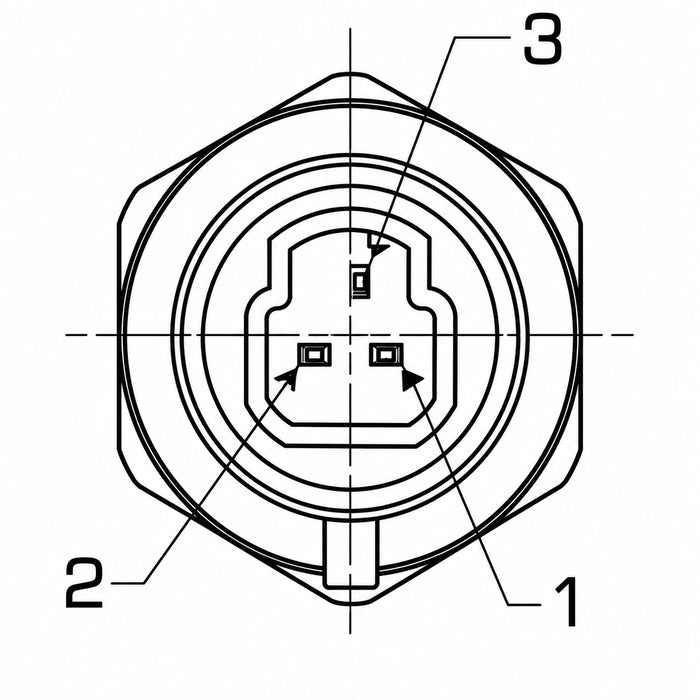

Wiring Diagram

• 1 - Ground (Sensor GND)
• 2 - +5V
• 3 - Signal to ECU

Important Installation Information

For maximum service life, we recommend not mounting the sensor directly to the engine block. Strong vibrations may negatively affect the lifespan of the sensor. We recommend using a hose or remote-mount solution to reduce vibrations.
