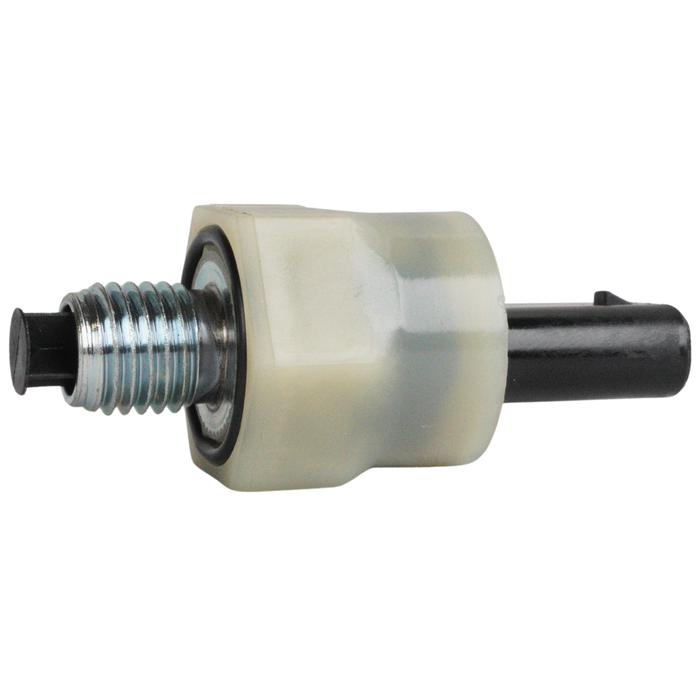

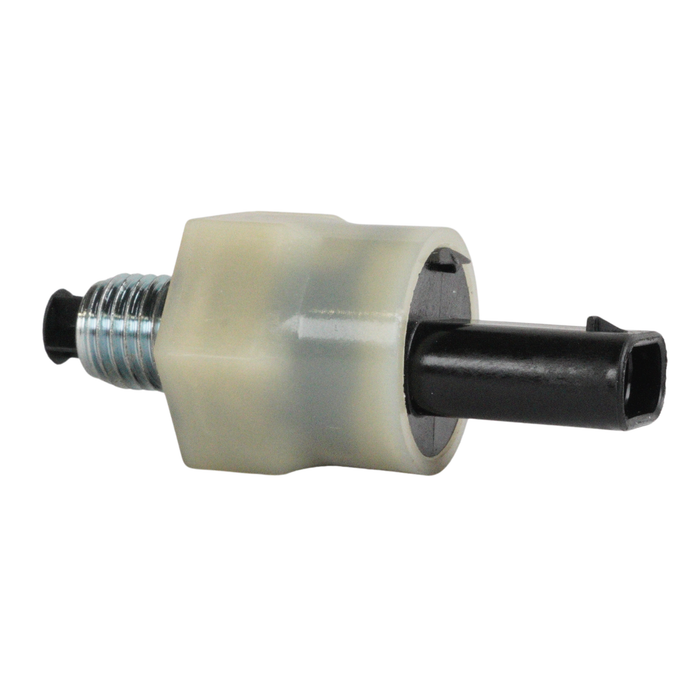

Pressure and Temperature Sensor (10bar / 160°C) - PWM Multisignal

Pressure and Temperature Sensor (10bar / 160°C) - PWM Multisignal

Compact sensor that transmits both pressure and temperature data via a single PWM signal.

• Pressure measurement: 0.5-10.5 bar
• Temperature measurement: -40 °C to 160 °C
• Operating temperature: -40 °C to 150 °C

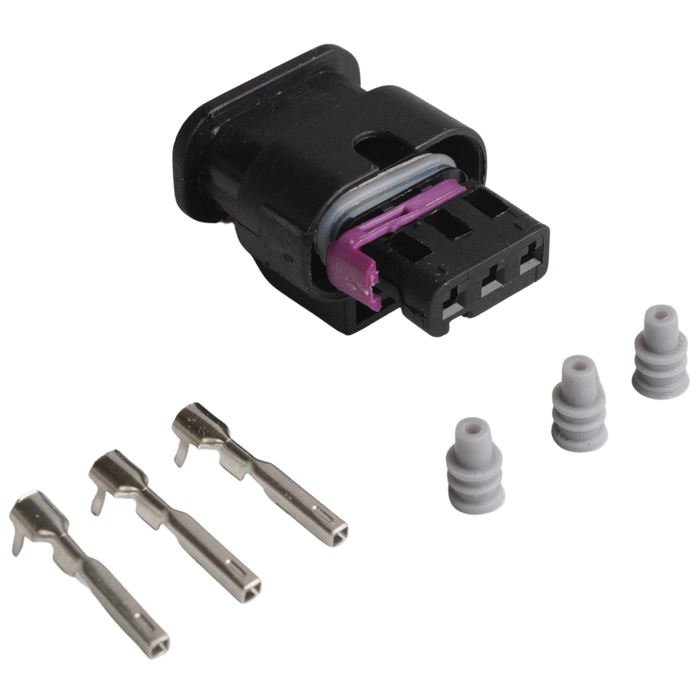

• Connection: 3-pin connector
• Thread size: M12x1.5
• Pin 1: +5V Supply
• Pin 2: SGND
• Pin 3: Signal out
