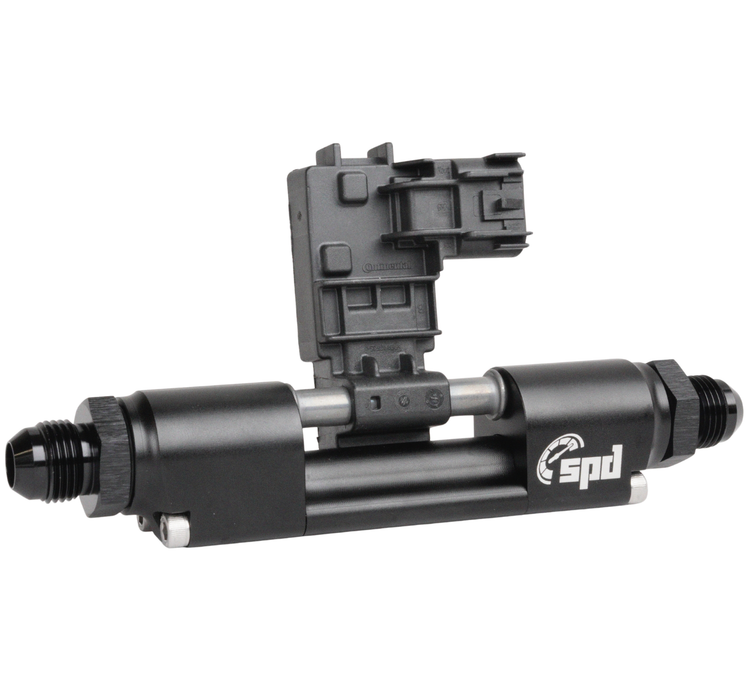

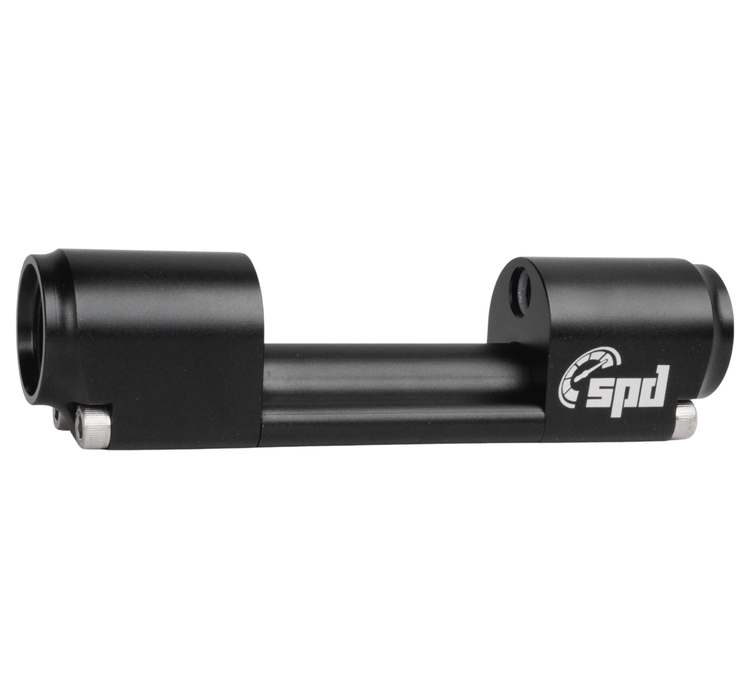

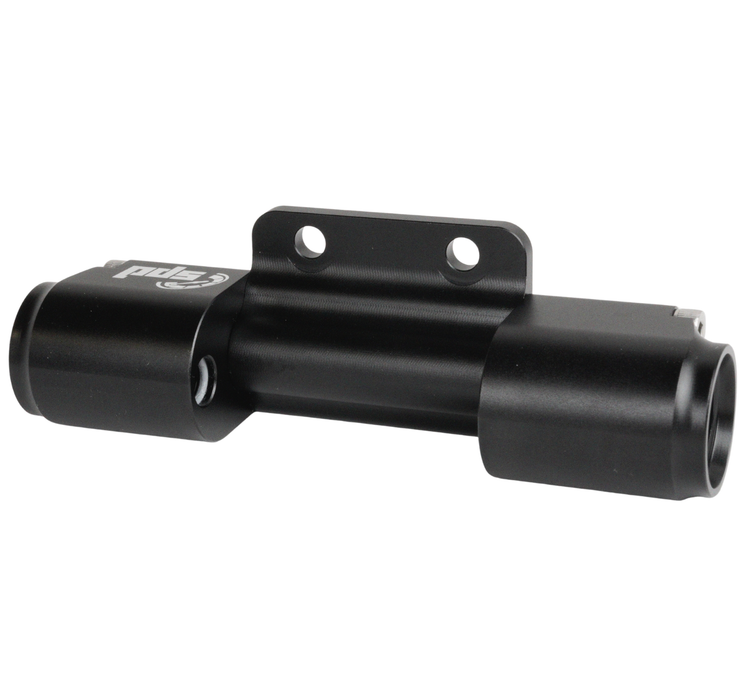

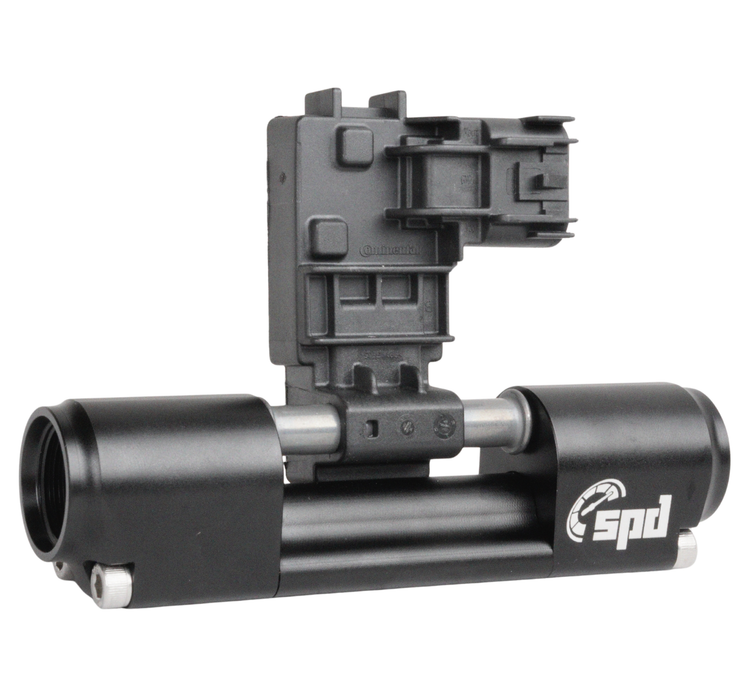

SPD Flex Fuel Sensor Adapter AN10 - Full Flow

SPD Flex Fuel Sensor Adapter AN10 - Full Flow

Efficient full-flow solution for flex fuel sensors at high fuel flow rates

This compact full-flow solution makes it possible to install the flex fuel sensor in the supply line even at very high fuel flow rates. The result is more stable and reliable readings, while also enabling the use of returnless fuel systems in combination with flex fuel sensors.

• AN10 ORB inlet and outlet ports
• Viton O-rings for optimal sealing and long service life
• Matte black finish for a clean and durable appearance

Can be supplied With or Without sensor

Ethanol fuel sensor mounted in vehicle's return fuel line.

+/- 5% accuracy, can handle temperatures between -40 and + 90 degrees C. Max 10bar pressure!

MaxxECU has direct support for this sensor.
Digital signal with variable pulse rate and frequency.
Measures ethanol content and fuel temperature.
+ 12v

High quality sensor from GM / Continental
