Race Seat Mounting Brackets Guide for Track Cars

A race seat can be FIA-approved, correctly sized and fitted with the right harness, yet still feel wrong if the mounting arrangement is an afterthought. This race seat mounting brackets guide covers the parts that determine where the seat sits, how securely it is fixed and whether you can achieve a proper driving position before the car reaches scrutineering.

For a track car, rally car or competition build, brackets are not simply metalwork between the seat and floor. They influence head clearance, steering-wheel reach, pedal control, harness geometry and access to the controls. Choose the mounting system around the car, the seat and the driver rather than buying the first pair of brackets that appear to fit.

Why race seat mounting brackets matter

A fixed-back competition seat needs a firm, repeatable mounting point. Under braking and cornering, the driver should not move relative to the pedals, wheel or harness. Any flex in the seat, runners or floor mounting can compromise control and make the driving position tiring over a long stint or rally stage.

The mounting also needs to suit the intended rules. FIA-homologated seats, harnesses and brackets may have specific fitting requirements, while championship regulations can add their own conditions. Always check the current regulations for your series, the seat manufacturer's instructions and the vehicle's cage or chassis requirements. A road-car MOT standard is not a substitute for competition compliance.

There is also a practical point. A seat mounted too high can put a helmet close to the roof or roll cage. One mounted too far back can leave the driver stretching for the wheel, while a seat that is too upright may place the shoulder belts at a poor angle. Correct brackets give you the adjustment needed to solve these issues properly.

Race seat mounting brackets guide: know the main types

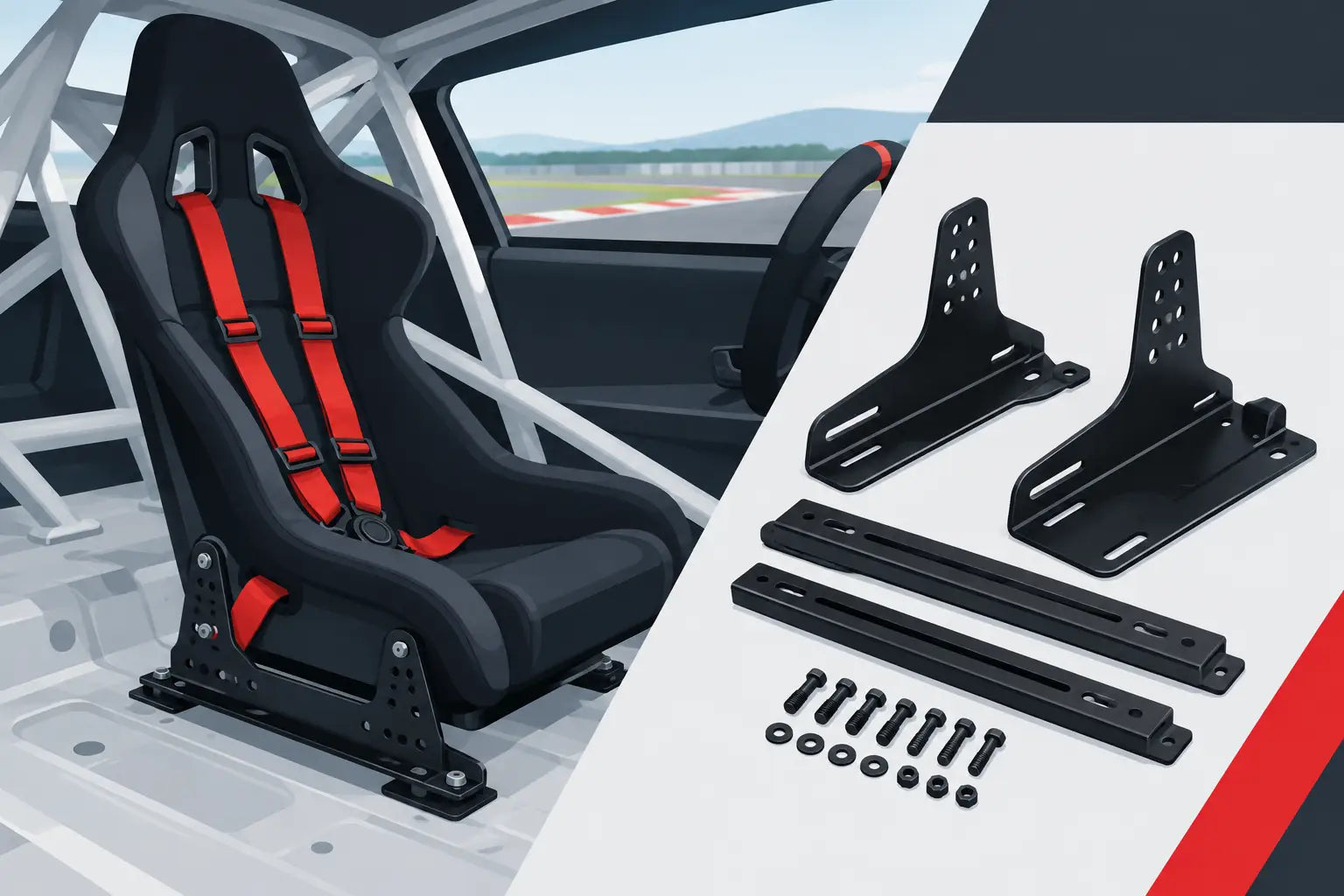

Side mounts for fixed-back race seats

Side-mount brackets bolt to threaded inserts on either side of a bucket seat, then attach to a subframe, floor mounts or vehicle-specific base. This is the usual choice for fibreglass, composite and aluminium fixed-back competition seats.

Good side mounts offer several height and angle positions, allowing the seat to be set low and reclined as required. Steel side mounts are a common, durable choice and are well suited to hard-use club racing and rally applications. Aluminium mounts can save weight, but should be selected from a reputable motorsport manufacturer and used only as intended.

The trade-off is access. Once a side-mounted seat is fitted, moving it fore and aft is less convenient than with runners. For a dedicated single-driver car, that is often a benefit rather than a drawback: fewer moving parts and a more direct, rigid installation.

Seat runners and sliders

Runners allow the seat to move forwards and backwards. They are useful where more than one driver uses the car, where the car is still road driven, or where access behind the seats matters. They can be fitted beneath a suitable seat base or as part of a vehicle-specific frame.

Not every fixed-back seat and runner combination is suitable. Runners add height, and that extra height can be a problem in low-roofed cars or with a helmet on. They can also introduce a small amount of movement compared with a direct-mounted setup. Use motorsport-rated runners, ensure both sides lock fully, and check that the release bar remains accessible once the seat is installed.

Vehicle-specific subframes and universal bases

A vehicle-specific subframe is designed to meet the original floor mounting points in a particular model. It can save considerable fabrication time and usually makes for a cleaner installation. The key word is specific: confirm the exact vehicle generation, driving side and intended seat arrangement before ordering.

Universal bases offer more flexibility for custom builds, kit cars and stripped competition shells. They may require drilling, spacers or fabrication, so the quality of the mounting points and the installation work becomes especially important. Avoid making a universal part fit through excessive packing, bent brackets or improvised holes.

Start with the driver position, not the bolt holes

Before tightening anything, place the seat in the car and assess the position with the driver wearing their usual racewear. Use the helmet if roof or cage clearance is close. Sit with your shoulders against the seat, feet able to operate every pedal through its full travel and wrists resting on the top of the steering wheel with arms almost straight.

From there, check the steering wheel, pedal box and gear lever together. It is easy to improve one area and create a problem elsewhere. For example, moving the seat rearward may give more knee clearance but make the wheel too distant. A spacer behind the steering wheel, pedal adjustment or a revised shifter position may be the better answer.

Aim to keep the seat as low as practical without creating interference with floor ribs, mounts or wiring beneath the car. Lowering the seat reduces the driver's centre of gravity and usually improves helmet clearance, but only if the seat remains properly supported and the sightline over the dashboard is usable.

For rally cars, consider space for co-driver equipment, intercom leads and the handbrake. For circuit cars, make sure the driver can operate fire extinguisher pulls, electrical cut-offs and any dashboard controls while fully harnessed. In endurance applications, repeat this check for each driver rather than assuming one compromise setting will work.

Fitting race seat brackets safely

Begin with the seat manufacturer's mounting instructions. These specify approved mounting locations, bolt sizes, torque values and, in some cases, the type of bracket required. Do not drill a composite seat shell unless the manufacturer explicitly permits it. The inserts and mounting structure are engineered around defined load paths.

Use the correct high-tensile fasteners, washers and locking hardware specified for the installation. Bolts should engage fully in threaded inserts without bottoming out, and no thread should be damaged or forced. If bolts pass through a floor or fabricated base, the load needs to be spread appropriately with proper reinforcement or backing plates, not small penny washers.

Offer up the brackets loosely first. Set height, rake and fore-aft position, then check that the seat is centred relative to the steering wheel and pedals. A slight offset may be necessary in some cars, but a visibly crooked seat can create poor pedal alignment and uneven harness routing.

Once the main position is confirmed, install the harness and assess it with the driver seated. Shoulder straps should leave the seat at the correct angle towards their mounting points, without rubbing hard against sharp seat edges, bracket hardware or cage tubes. Lap belts need a clear path around the pelvis, not across the stomach or over the edge of the seat cushion. The seat, brackets and harness all work as one system.

Torque fasteners to the supplier or manufacturer specification and mark completed bolts with a paint pen. This gives a quick visual check during routine preparation. Recheck the installation after the first event, particularly if the car has covered rough rally mileage, kerbs or vibration-heavy track use.

Common mistakes that cause problems later

The most frequent issue is buying brackets before measuring the car and seat. Seat widths vary, as do mounting-hole centres, floor shapes and cage positions. Measure the available space around the seat shell, including the shoulder area and base, rather than relying on a photograph or a previous owner's setup.

Another common mistake is using runners simply because the car once had them. If only one driver uses a dedicated race car, direct side mounting may provide more headroom and rigidity. Conversely, a shared track-day car may genuinely need runners, provided the resulting height and locking mechanism remain suitable.

Avoid stacking washers or making tall spacer towers to correct a poor fit. Small, manufacturer-approved spacers can be appropriate, but excessive spacing increases leverage on the bolts and brackets. If the seat needs a major change in height or angle, choose a different mount, subframe or seat model.

Finally, do not treat a seat installation as finished because it looks tidy. Check full pedal travel, gear selection, handbrake movement, harness release, door clearance and the ability to exit quickly. A cockpit that works in the workshop can reveal problems once the driver is wearing a helmet, HANS device and gloves.

When to ask for advice

Custom cages, unusual floor pans, tall drivers and multi-driver endurance cars are all situations where it pays to ask before ordering. Motorsport Supplies can help identify suitable side mounts, runners and vehicle-specific bases when you can provide the seat model, vehicle details, driver height and the available measurements.

The right setup should feel unremarkable once you are strapped in. You should be able to concentrate on braking points, notes or racecraft, not brace yourself in the seat or reach for a control that is just out of range.
