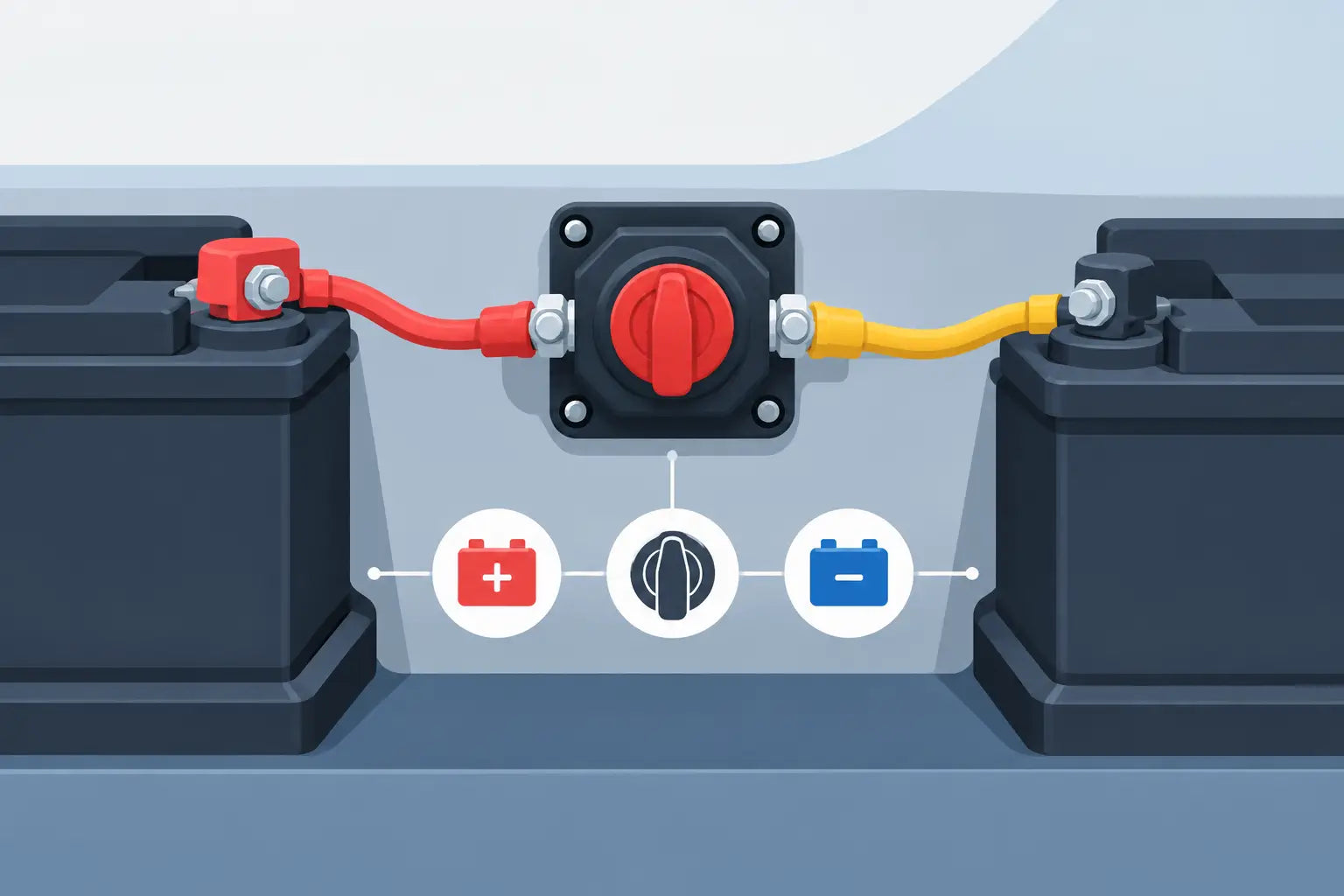

How to Fit a Race Battery Isolator Safely

A battery isolator is a small component with a big job: it must let a marshal, scrutineer or crew member make the car safe quickly, while also stopping the engine reliably. Knowing how to fit a race battery isolator properly means more than putting a switch in the main battery cable. The installation has to suit your vehicle, its charging system and the regulations for the championship you are entering.

For a simple carburetted club racer, the wiring can be straightforward. For an EFI, turbocharged or alternator-equipped rally car, using the wrong switch terminals or wiring sequence can leave the engine running after the battery has been disconnected, or damage the alternator. Start with the right isolator and a clear wiring plan rather than treating it as a last-minute scrutineering job.

Choose the right type of race battery isolator

A basic two-pole battery cut-off switch disconnects the battery from the car. It can be suitable for certain low-complexity applications and as a local maintenance isolator, but it will not necessarily stop an engine that is running from alternator output.

For most competition cars, use a purpose-made multi-pole master switch. These usually combine heavy-duty main battery terminals with smaller auxiliary terminals. The auxiliary contacts are used to interrupt the ignition feed, ECU power feed or alternator excitation circuit as required. When the switch is turned off, it isolates the battery and removes the power that allows the engine to continue running.

Check your championship regulations before buying or fitting anything. Requirements vary between disciplines and organisers, particularly on external operation, labelling, switch position and whether the engine must stop immediately. A switch accepted for track days may not meet the requirements for a stage rally car or a series running to FIA-based regulations.

Match the switch to the car's electrical load and battery position. High-current starters, remote boot-mounted batteries and older engines with heavy cranking demand a properly rated unit. Do not choose a cheap universal switch simply because its terminals look substantial. Look for a motorsport-grade isolator with continuous and cranking current ratings appropriate to the installation.

Plan the installation before cutting cable

Decide where the isolator will sit, how it will be operated and how the cables will be protected. The main switch needs to be accessible from inside the cockpit, normally to the driver when restrained. Where regulations require external operation, fit an approved pull cable or external handle that can be reached quickly by a marshal.

A common arrangement places the master switch on the dashboard, centre console or a protected bulkhead area, with an external pull mounted at the base of the windscreen or another regulation-approved location. Keep the operating cable route smooth, with gentle bends and secure clips. A stiff, tight or poorly supported cable may not turn the switch fully when someone needs it most.

Before drilling, hold the switch and bracket in position. Check that the key or lever has room to operate, the terminals cannot touch a cage tube or dashboard framework, and the cable exits will not be strained. The switch body should be firmly mounted to metal or a substantial panel. A thin, vibrating dashboard panel may crack over time and loosen the terminals.

Disconnect the negative battery terminal before starting work. If the battery is in the boot, remove the earth connection there first. Treat every unfused battery cable as live until it is physically disconnected.

How to fit a race battery isolator in the main cable

The main positive battery cable is normally routed from the battery to the isolator, then from the isolator to the starter motor or main vehicle power distribution point. This means switching off the isolator removes battery power from the starter and the rest of the car.

Use correctly sized automotive battery cable for both the cable run and the expected cranking load. Cable size depends on starter current and total length, so a battery in the boot needs heavier cable than one mounted close to the engine bay. Undersized cable causes voltage drop, slow cranking and unnecessary heat.

Keep the main positive cable protected throughout its route. Run it away from exhausts, sharp edges, moving pedal assemblies and steering components. Use quality P-clips at regular intervals, fit grommets wherever cable passes through a bulkhead or panel, and add abrasion-resistant sleeving where needed. A cable passing through bare aluminium or steel is not acceptable on a race car.

Terminate the cable with properly crimped heavy-duty lugs. A sound crimp made with the correct tool is preferable to a flattened terminal made with pliers or a vice. Use adhesive-lined heat shrink over the joint, then check that the lug cannot twist or pull on the cable. Keep terminal faces clean and tighten them securely, but do not overtighten small studs on the auxiliary terminals.

The battery negative should be earthed to a clean, substantial point on the chassis or engine, with a suitable engine-to-chassis earth strap. Paint, powder coating and corrosion create resistance, so expose clean metal at the connection and protect it after assembly. Poor earthing often looks like a starter or battery fault until the car is under load.

Wire the engine stop circuit correctly

This is the part that deserves the most care. Disconnecting the battery alone may not stop an engine once the alternator is charging. With the engine running, the alternator can provide enough power to keep ignition, fuel injection and fuel pumps alive.

The correct method depends on the vehicle and the isolator manufacturer's terminal diagram. Many motorsport master switches use an auxiliary circuit to interrupt the alternator field or warning-lamp excitation feed. Others may require a separate ignition or ECU feed to be switched. Follow the wiring diagram supplied with your specific isolator and identify every terminal before connecting anything.

Do not simply disconnect the alternator's main output cable while the engine is running. Opening that high-current circuit can create damaging voltage spikes, potentially harming the alternator, ECU, data logger and other electronics. Modern ECUs and digital dash systems are especially unforgiving of poor shutdown wiring.

On an EFI car, consider all circuits that could keep the engine running: ECU main relay, ignition coils, injectors, fuel pump relay and alternator excitation. The aim is a clean shutdown, not merely a flat battery cable. If you are fitting an isolator to a car with an ECU, lithium battery, electric power steering or a complex PDM installation, seek vehicle-specific advice before finalising the wiring.

Fit fusing close to the battery

An isolator does not replace sensible circuit protection. Any permanent live feeds, such as a fire extinguisher system, data logger memory supply or charging lead, should be carefully considered and fused as close as practical to the battery. Some regulations restrict what can remain live when the master switch is off, so there is no one-size-fits-all answer.

If a circuit bypasses the master switch, it must be intentional, documented and compliant. An accidental unfused bypass cable defeats the purpose of the isolator and can turn a minor impact into an electrical fire.

Test the installation before scrutineering

Do not leave testing until loading day. With the battery reconnected, first confirm that the car starts normally and that the starter cable, switch terminals and earth straps remain cool during cranking.

Then run the engine at idle and operate the isolator from the cockpit. The engine should stop promptly, and the dash, fuel pumps and other switched systems should power down. Restart the car and repeat the test using the external pull or handle. If the external control does not operate the switch decisively, adjust the cable route or linkage before relying on it.

After testing, inspect the charging voltage and look for warning lights or ECU faults. If the alternator warning lamp behaves differently, the engine dies only after a delay, or the engine continues to run, stop and review the auxiliary wiring. Do not assume a switch that cuts the dash has completed the job.

Label the external control clearly using the symbol and marking required by your regulations. Make sure the label is visible against the car's paint colour and not hidden by a windscreen banner, mud flap, number board or bodywork. For rallying and endurance work, inspect the external pull during routine pre-event checks because cable adjustment and vibration can change its operation.

Common fitting mistakes to avoid

The most common problems are undersized cable, poor crimping, an unfused live cable passing through a bulkhead, and relying on a simple battery switch to stop an alternator-fed engine. Another regular issue is placing the switch where it is easy to reach in the garage but inaccessible once the driver is strapped into the seat.

Avoid mounting the isolator beside fuel lines, fuel pumps or heat sources. Keep it protected from direct water spray where possible, particularly on rally and autocross cars. A weather-resistant switch is useful, but it is not a substitute for sensible positioning and regular inspection.

A properly fitted race battery isolator is one of those jobs that is rarely noticed when it is right. That is exactly the point. Take the time to select a suitable motorsport switch, follow its wiring diagram precisely and test both operating positions before every event. If your car's charging or ECU wiring is unclear, Motorsport Supplies can help you select the right equipment before you start cutting cable.
