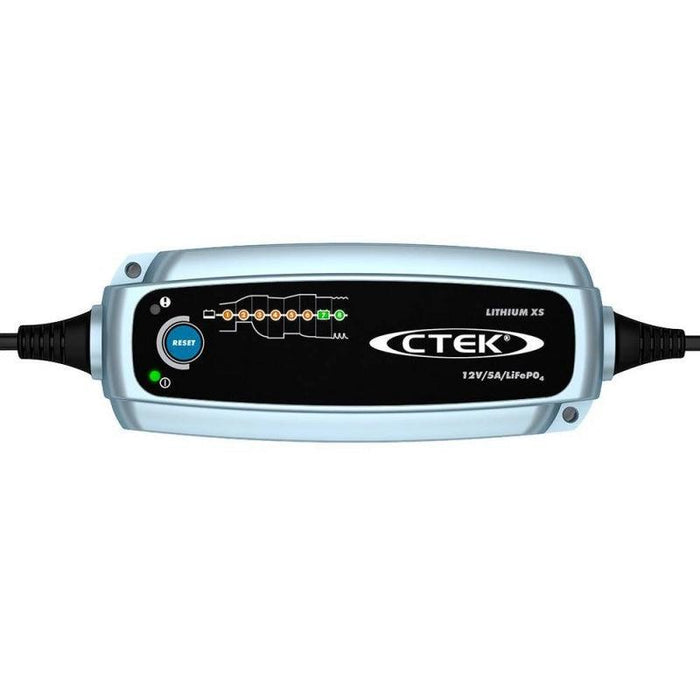

CTEK Lithium XS Battery Charger

Automatic charging of Lithium batteries

Simple Lithium charging

The LITHIUM XS is an advanced microprocessor controlled charger and maintainer specially designed for Lithium (12V LiFePO4) batteries.

The LITHIUM XS is specially designed for Lithium (12V LiFePO4) batteries. With up to 5A of charge current available, it can charge LiFePO4 batteries from 5Ah to 60Ah and maintain up to 120Ah. It’s easy to use – just connect it and charging starts immediately. There’s no need to disconnect your battery and any low voltage protection electronics will be reset automatically. The LITHIUM XS is a ‘connect and forget’ charger with 8 charging steps, a testing sequence that tells you if the battery can take and retain the charge, a unique maximisation step to restore full capacity and patented maintenance charging for maximum performance, even after months of inactivity.

Technical information
Ambient temperature-20˚C to +50˚C
PositioningPortable (mounting possible)
Warranty5 years
Input220–240VAC, 50–60Hz, 0.65A max
Output13.8V/14.4V, 5.0A max
Back current drain*Corresponding to less than 1Ah/month
Battery types12V:, LiFePO₄
Battery capacity5–120Ah
Insulation classIP65

Inside the box

1 x LITHIUM XS Charger

1 x Connect Clamp

1 x Connect Eyelet M6
